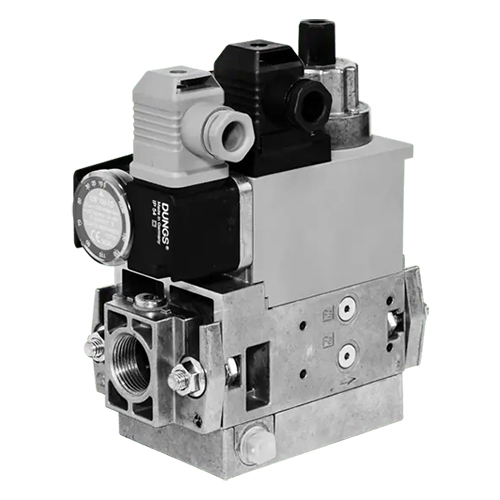

MB-D(LE) 405 - 412 B01 GasMultiBloc Combined Regulator and Safety Shut-off Valves Single-Stage Function

Get a Price/Quote

MOQ : 1 Piece

MB-D(LE) 405 - 412 B01 GasMultiBloc Combined Regulator and Safety Shut-off Valves Single-Stage Function Specification

Valve Type
Safety shut-off valve (double-valve)

Valve Size
405, 412 (as per model number)

Control System
Solenoid operated with manual reset option

Features
Integrated pressure regulator, two safety shut-off valves, test points for inlet/outlet, easy wiring, compact design

Material
Die-cast aluminium housing

Connection Type
Flange connection

Structure
Compact multi-bloc design with combined regulator and safety shut-off valves

Application
Gas burner control for commercial and industrial heating applications

Voltage
230 V AC, 50/60 Hz

Sealing
Soft-seated valve with metallic sealing for shut-off

Type
Single-stage function combination gas valve

Power
24 VA

Pressure
Max. inlet pressure: 360 mbar, Outlet pressure set-point: 5-60 mbar

Media

Port Size
DN 40, DN 50

Temperature
-15C to +60C (ambient)

Disc
Metal-disc with resilient sealing element

Pin
6-pin plug connection

Mounting Position
Any, except with actuator downwards

Response Time
<1 second for closure

Adjustment Range
Adjustable outlet pressure, spring-loaded regulator

Leakage Class
A as per EN 161

Ambient Humidity
Max 95% RH, non-condensing

Duty Cycle
100% ED continuous duty

Maintenance
Service-friendly modular construction

Enclosure Protection
IP54 or higher

Weight
Approx. 6-8 kg depending on size

Position Indicator
Visual position indicator for main valves

Power Consumption
10 VA per valve

MB-D(LE) 405 - 412 B01 GasMultiBloc Combined Regulator and Safety Shut-off Valves Single-Stage Function Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

MB-D(LE) 405 - 412 B01 GasMultiBloc Combined Regulator and Safety Shut-off Valves Single-Stage Function About

Experience a Price Cut on the MB-D(LE) 405 - 412 B01 GasMultiBloc, a preeminent choice for controlling gas burner systems in commercial and industrial heating applications. This enlightened, single-stage combination valve boasts a meritorious, compact structure, featuring an integrated regulator and dual safety shut-off valves. With reduced power consumption per valve and IP54-rated die-cast aluminium housing, it provides robust safety and performance under demanding conditions. Benefit from adjustable outlet pressures and maintenance-friendly modular construction - an in-demand, reliable solution for modern energy management.

Versatile Application for Precise Gas Control

The MB-D(LE) 405 - 412 B01 GasMultiBloc Combined Regulator and Safety Shut-off Valves are expertly used for the safe and efficient control of natural gas, LPG, and similar non-aggressive gases. Ideal for commercial and industrial burners, these valves ensure precise regulation and rapid shut-off. Designed for straightforward mounting (any orientation except actuator downwards), the unit's visual indicators and adjustment features make it accessible and practical for technicians managing heating systems.

Streamlined Payment and Reliable Supply Process

For acquisition, a structured outlay is arranged with clear payment terms tailored to customer requirements. Each unit is securely packaged and shipped promptly following successful handover and order confirmation. With superior supply ability, our products are available for quick delivery across India, ensuring industrial projects stay on schedule. Comprehensive packaging ensures devices arrive intact and ready for installation, supporting businesses with efficient, hassle-free deployment.

FAQ's of MB-D(LE) 405 - 412 B01 GasMultiBloc Combined Regulator and Safety Shut-off Valves Single-Stage Function:

Q: How does the MB-D(LE) 405 - 412 B01 GasMultiBloc enhance safety in gas burner systems?

A: The MB-D(LE) 405 - 412 B01 features two safety shut-off valves and fast response time (<1 second for closure). Its robust sealing and visual position indicator ensure reliable and safe operation in gas control applications.

Q: What types of gases can this multi-bloc regulator and valve handle?

A: This multi-bloc unit is designed for natural gas, LPG, and a variety of other non-aggressive gases commonly used in industrial and commercial heating systems.

Q: Where can the MB-D(LE) 405 - 412 B01 be used?

A: It is ideal for commercial and industrial heating applications, such as gas burner control in factories, processing plants, and large building heating systems across India.

Q: How should the unit be mounted for optimal use?

A: Mounting is flexible in any position, except with the actuator facing downwards, allowing for easy integration into diverse piping configurations and system layouts.

Q: What are the benefits of the modular construction of this valve?

A: Modular construction allows for straightforward service and maintenance, minimizing downtime and making component replacement or inspection more efficient.

Q: What is the typical process for ordering and receiving this product?

A: After confirming the handover terms and outlay, the product is securely packaged and shipped. Our supply ability ensures timely delivery and readiness upon arrival.
